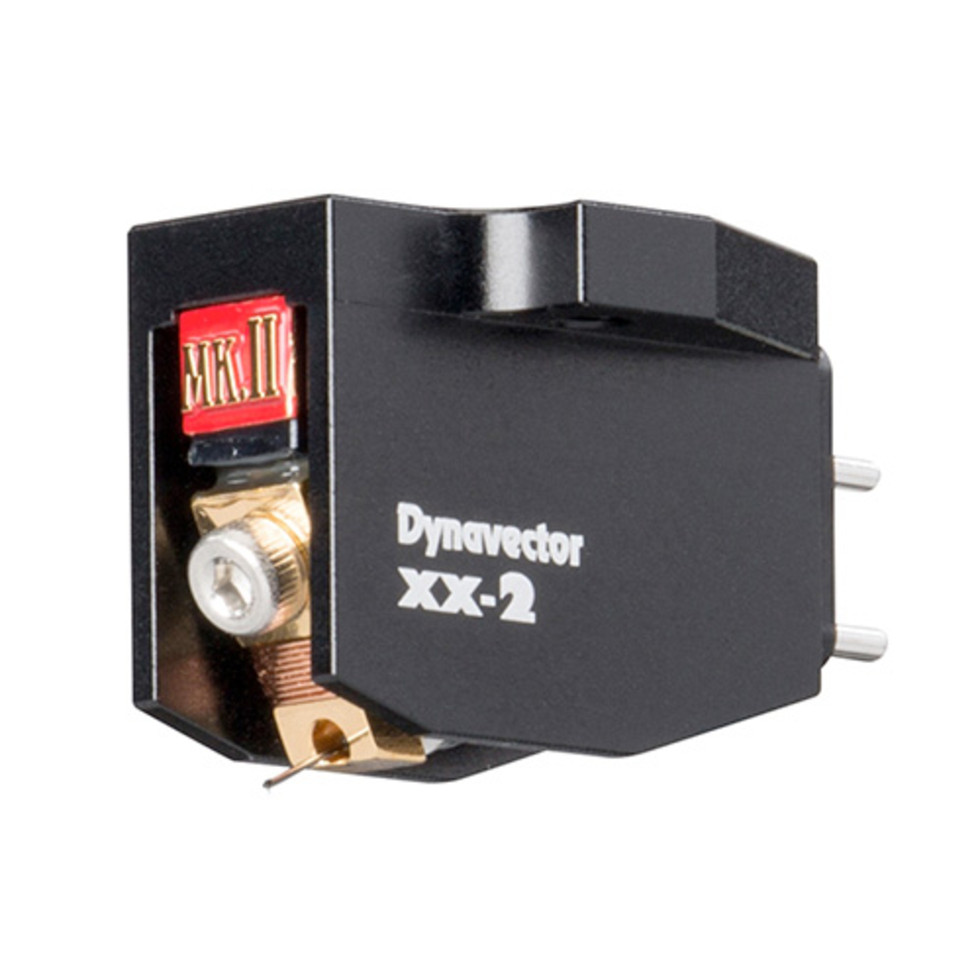

DV XX2-mkII
- magnetic flux damper
- Alinco-5 magnet
- rigid construction
The DV XX-1 was the first cartridge to feature a “magnetic flux damper” (patent) and softened magnetism” (patent) processes that reject the magnetic fluctuation that is detrimental to a moving coil cartridges performance.
The The DV XX-2 mkII retains the benefit of the flux damper but features the Alinco-5 magnet and the similar rigid construction to the Te Kaitora Rua. Alnico magnets exhibit high magnetic flux density combining with a low coercive therefore magnetic resistance is lower than other magnetic types such as rare earth and ferrite, providing the exceptional stability of the XX-2 mkII output voltage. There is also the additional advantage of low magnetic and electrical resistance contributing to a discernible improvement in sound quality. A truly wonderful music-maker!
Trade in your old Dynavector cartridge on a brand new, latest model one and receive a substantial discount!
Use the drop down list box above to see trade in options. Also see our FAQ’s on Dynavector Trade Ins. FAQ link at bottom of this page or in “About” tab at top of page and you can contact us anytime for more help.
Type | low output moving coil cartridge with flux damper and alnico magnet |
Impedance | 6 ohms |
Output voltage | 0.28mV (at 1kHz, 5cm/sec) | Recommended load impedance | >30 ohms |
Channel separation | 30dB (at 1kHz) | Cantilever | 6mm solid boron |
Frequency response | 20 – 20kHz (±1dB) | Stylus | PF line contact shape, Stylus radius 7 x 30 micron |
Compliance | 10 mm/N | Weight | 8.9g |
Tracking force | 1.8 – 2.2g | P75 PE Mode setting | Low R |
