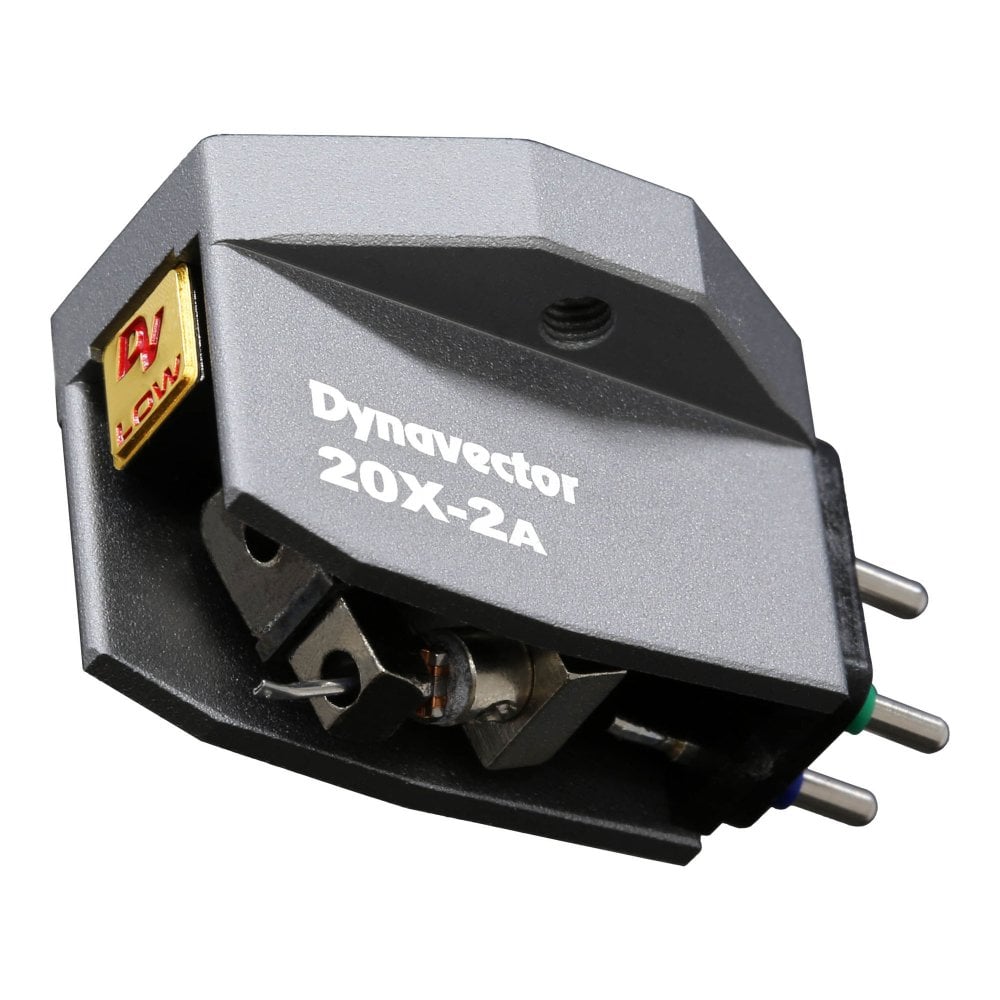

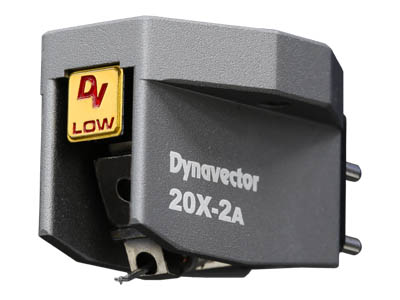

DV 20X2A High and Low NEW model – In Stock
- solid aluminium alloy body
- magnetic flux damping and softened magnetism
- NEW Special annealing magnetic circuit
- Neodymium magnet
- Micro Ridge diamond stylus
- Available in both a high output and low output version
The DV-20X-2A has a solid aluminium-alloy body similar to the XX-2. This makes a rigid platform for the cartridge motor and aids secure fitting to the arm. The cantilever is a 6mm length hard aluminium pipe cantilever with a Micro-Ridge diamond stylus.
The magnetic flux damping and softened magnetism along with powerful Neodymium magnet gives out the 20X2A-H a healthy 2.8 mV output at a suitable impedance for most MM inputs. The 20X2A-L has an output of 0.3 mV ideal for most MC phono stage.
The new 20X-2A incorporates Dynavector’s latest development, a special annealing magnetic circuit. The magnetic circuit, which is the core of an MC cartridge, uses pure iron that has stable magnetic properties with minimal distortion. Furthermore, by performing special annealing that focuses on optimising the magnetic annealing process such as annealing temperature, environment, heating duration, and heating / cooling rates, we have succeeded in delivering expansive resonant sound without distortion and unrivalled resolution.
Both versions have been made available to help users get the best result for their own circumstances. The high output model suits valve preamps, basic amplifiers that only offer MM or amplifiers with less accomplished MC sections. Using a high output can also be of benefit if you live in an area with high radio frequency interference. The low output version scores where a system is set up with a good quality MC amp input.
Trade in your old Dynavector cartridge on a brand new, latest model one and receive a substantial discount!
Special Offer: For a limited time, trade in your DV 20X2 series cartridge on a brand new DV 20X-2A model and receive the the Full 20-2A Trade In Discount of $319.00. Use the drop down list box above to see trade in options. Also see our FAQ’s on Dynavector Trade Ins. FAQ link at bottom of this page or in “About” tab at top of page and you can contact us anytime for more help.
| Model | High Output | Low Output |
|---|---|---|
| Type | High output moving coil cartridge with flux damper and neodymium magnet | Low output moving coil cartridge with flux damper and neodymium magnet |
| Output voltage | 2.8 mV (at 1kHz 5cm/sec) | 0.3 mV (at 1kHz 5cm/sec) |
| Tracking force | 1.8 – 2.2 g | 1.8 – 2.2 g |
| Impedance | 150 ohms | 5 ohms |
| Recommended load impedance |
>1,000 ohms | >30 ohms |
| Channel separation | 25dB (at 1kHz) | 25dB (at 1kHz) |
| Channel balance | 1.0 dB (at 1KHz) | 1.0 dB (at 1KHz) |
| Frequency response | 20 – 20,000 Hz（±1dB) | 20 – 20,000 Hz（±1dB) |
| Compliance | 20 – 12 mm/N | 20 – 12 mm/N) |
| Cantilever | 6mm length hardened aluminium pipe | 6mm length hardened aluminium pipe |
| Stylus | Micro Ridge Nude diamond | Micro Ridge nude diamond |
| P75 PE Mode setting | n/a | XLow or Low R |
