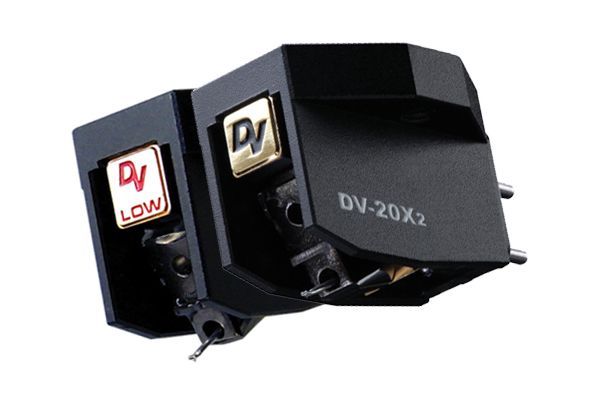

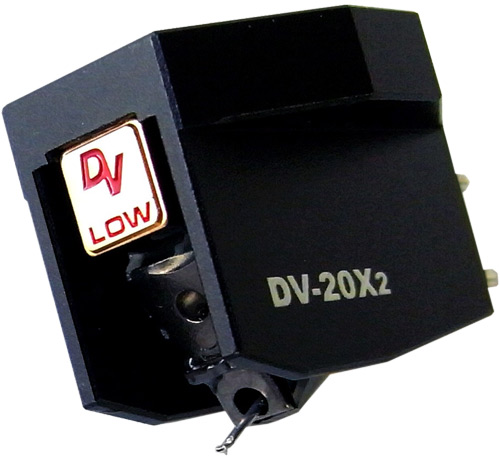

DV 20X2 High and Low
- solid aluminium alloy body – new body shape
- magnetic flux damping
- Neodymium magnet
- Micro Ridge diamond stylus
- Available in both a high output and low output version
The renowned DV-20X2 has a solid aluminium-alloy body similar to the XX-2. This makes a rigid platform for the cartridge motor and aids secure fitting to the arm. The cantilever is a 6mm length hard aluminium pipe cantilever with a Micro-Ridge diamond stylus.
The magnetic flux damping and softened magnetism along with powerful Neodymium magnet gives out the 20X2H a healthy 2.8 mV output at a suitable impedance for most MM inputs. The 20X2L has an output of 0.3 mV ideal for most MC phono stage.
Both versions have been made available to help users get the best result for their own circumstances. The high output model suits valve pre-amps, basic amplifiers that only offer MM or amplifiers with less accomplished MC sections. Using a high output can also be of benefit if you live in an area with high radio frequency interference. The low output version scores where a system is set up with a good quality MC amp input.
Trade in your old Dynavector cartridge on a brand new, latest model one and receive a substantial discount!
Use the drop down list box above to see trade in options. Also see our FAQ’s on Dynavector Trade Ins. FAQ link at bottom of this page or in “About” tab at top of page and you can contact us anytime for more help.
| Model | High Output | Low Output |
|---|---|---|
| Type | High output moving coil cartridge with flux damper and alnico magnet | Low output moving coil cartridge with flux damper and alnico magnet |
| Output voltage | 2.8 mV (at 1kHz 5cm/sec) | 0.3 mV (at 1kHz 5cm/sec) |
| Tracking force | 1.8 – 2.2 g | 1.8 – 2.2 g |
| Impedance | 150 ohms | 5 ohms |
| Recommended load impedance |
>1,000 ohms | >30 ohms |
| Channel separation | 25dB (at 1kHz) | 25dB (at 1kHz) |
| Channel balance | 1.0 dB (at 1KHz) | 1.0 dB (at 1KHz) |
| Frequency response | 20 – 20,000 Hz（±1dB) | 20 – 20,000 Hz（±1dB) |
| Compliance | 20 – 12 mm/N | 20 – 12 mm/N) |
| Cantilever | 6mm length hardened aluminium pipe | 6mm length hardened aluminium pipe |
| Stylus | Nude Diamond “Shibata III” Line Contact | Micro Ridge nude diamond |
| P75 PE Mode setting | n/a | XLow or Low R |
